How to Brand Cardboard Boxes

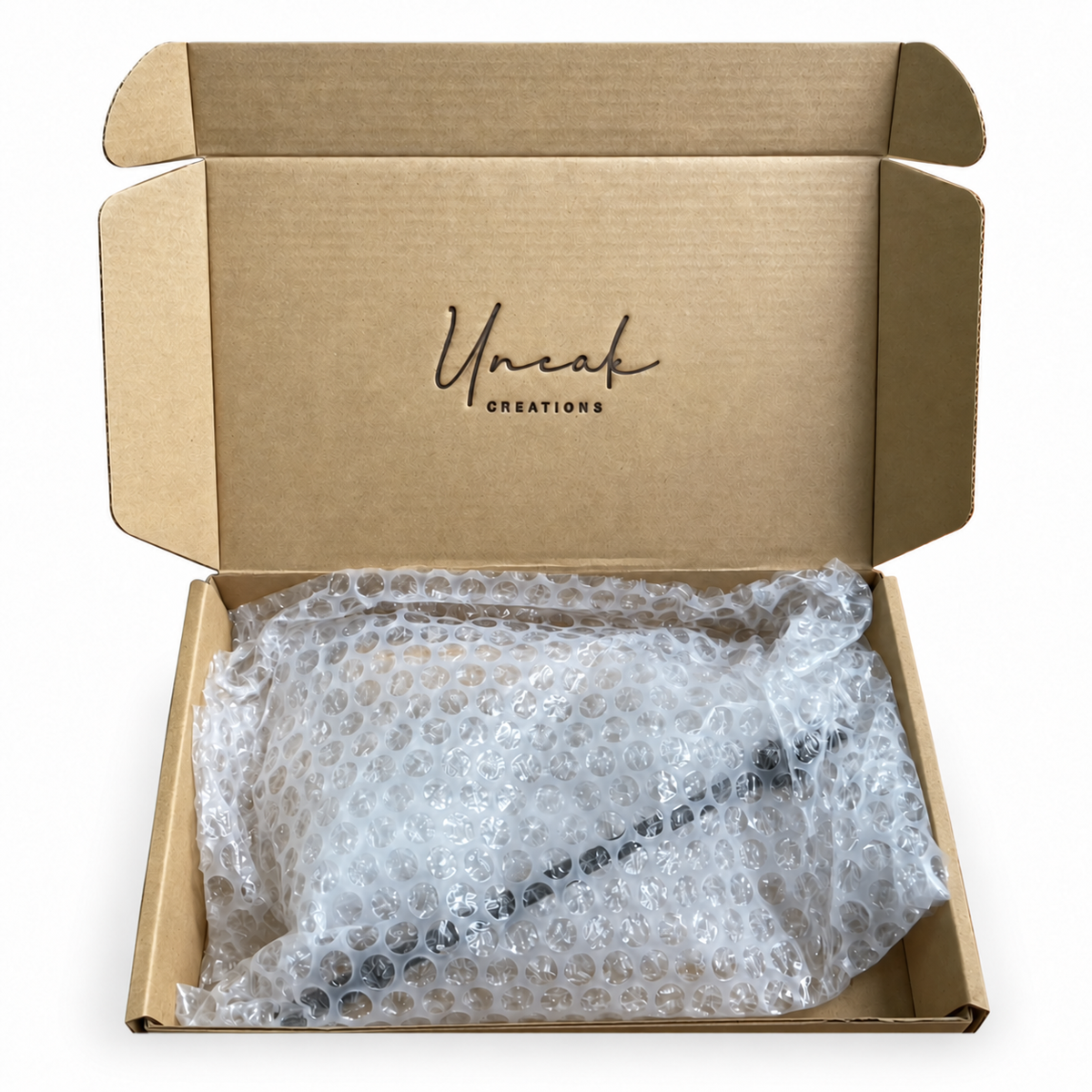

We achieved this result on our own plain shipping boxes. To repeat it on your packaging, check the surface, artwork, backing and tool settings on spare boxes from the same batch. The archive does not establish a universal temperature, contact time, logo-size limit or production speed. The following is a practical testing workflow, with those details to be recorded on your actual materials.

Choose a cardboard branding setup

A Professional 500W cardboard branding iron includes its custom brass head and adjustable-temperature handle. For a bench setup, the heated press and custom brass cardboard branding head are separate purchases. Confirm mounting, logo size, press reach and box support before ordering. Suitable foil is separate.

1. Identify the box surface

Ask the supplier whether the outer liner is plain paper or has a coating, varnish, laminate, wax or other treatment. Corrugated board has a fluted core; a folding paperboard carton is solid board. Record the grade, thickness or flute, supplier and batch where available. Begin with an identified plain box comparable to the one you want to use.

Do not experiment on an unknown coated surface. Obtain the supplier’s heat-use guidance first. Keep tape, labels and glued seams out of the intended contact area.

2. Review the logo at its finished size

Use the actual logo dimensions, not just the branding head’s outside dimensions. Small text, narrow gaps and thin strokes may disappear or spread as the surface darkens. A bold logo with clear open spaces is a useful starting candidate, not a guaranteed design rule.

Send the artwork and intended size before ordering. Include your box sample so the same material can be checked. Do not assume a wood test proves cardboard results.

3. Support and position the panel

Trial a flat blank first where practical. Lay the marking panel on a flat, stable support suitable for the heat and pressure involved. Avoid folds and doubled layers. Check that the fixture does not contact the hot head.

For an assembled box, work while it is empty and support the inside immediately behind the marking area. The support should prevent the panel bending while allowing the tool to contact squarely. Do not hold the backing by hand beneath the hot tool. Check for compressed flutes, indentations and damage after each trial.

Use an edge stop or template to establish placement. A square or rectangular head body helps you reference orientation, but the fixture must leave a clear path for the tool.

4. Establish heat and contact time on spare material

Read the instructions for your exact tool and use its stable resting arrangement. Prepare several spare panels from the same box batch. With a thermostatic tool, record the setpoint and, if measured, the die-face temperature separately. A display or power-controller dial is not a direct measurement of the logo face.

Make a brief trial impression and inspect it before adjusting. Change one variable at a time within the tool’s instructions. Record heat setting, contact time, pressure technique and recovery interval. Use only enough pressure for even contact; do not solve a faint mark by crushing the panel.

Do not copy the wood-branding settings on our wood guide onto cardboard. Cardboard requires its own trial. Stop if the material shows deep scorching, persistent smoke, charring, coating damage or structural weakening.

5. Check the result before repeating

Let the panel cool. Check legibility, background scorching, double images and the reverse side. Inspect the flutes and folds, then assemble the blank to make sure it still functions. If the centre is faint, check support and contact before increasing heat. If edges blur, reconsider contact time, heat and design detail. If placement varies, improve the stop or template.

Repeat the chosen setup on a short batch and after an idle interval. Photograph every sample, including failures. A single attractive impression is not evidence of a repeatable shipping workflow.

6. Keep the workspace ready for a hot tool

Use a stable bench, the manufacturer-approved resting arrangement and suitable ventilation. Keep loose packaging, paper offcuts, solvents and other combustibles away from the hot head. Route the cord clear of the working area. Supervise the tool, switch it off after use and allow it to cool before storage. Inspect marked cardboard for smouldering or excessive heat before stacking or packing it.

What if I want gold or coloured foil?

That is a separate test. Use a foil grade recommended for your exact paperboard surface and a correctly mounted die in equipment that supplies even, controlled pressure. Start with supported flat samples; test assembled-box access separately. Identify the exact foil grade and follow its supplier’s peel or removal instructions. Check transfer, detail, foil adhesion after cooling and panel damage. The correct foil grade, surface coating and assembled-box access must be established by testing your exact material and equipment. Our direct-branding photograph does not demonstrate a foil result.

Learn more in our cardboard box branding and hot-foil application guide. For an existing machine, provide the make/model, mounting photographs, working area, die-height requirements, box format and foil grade.
